Tiny AVR/PIC Bootloader+

16-bit PIC family firmwares:

Remark: "D" and "E" families are TinyBootloader+ designations, not Microchip ones!!!



Distinction between "D" and "E" type

Relationship with the D-type and E-type is similar to the relationship of PIC18J and PIC18 (###need to be explained....).
"Flash Config Words" does not exist in the D-type.

Device corresponding to the D-type:
dsPIC30F
PIC24F
PIC24FV
PIC24HJ
PIC24E(Partial)
dsPIC33F(Partial)
dsPIC33E(Partial)

Device corresponding to the E-type:
PIC24FJ
PIC24E(Partial)
dsPIC33F(Partial)
dsPIC33E(Partial)

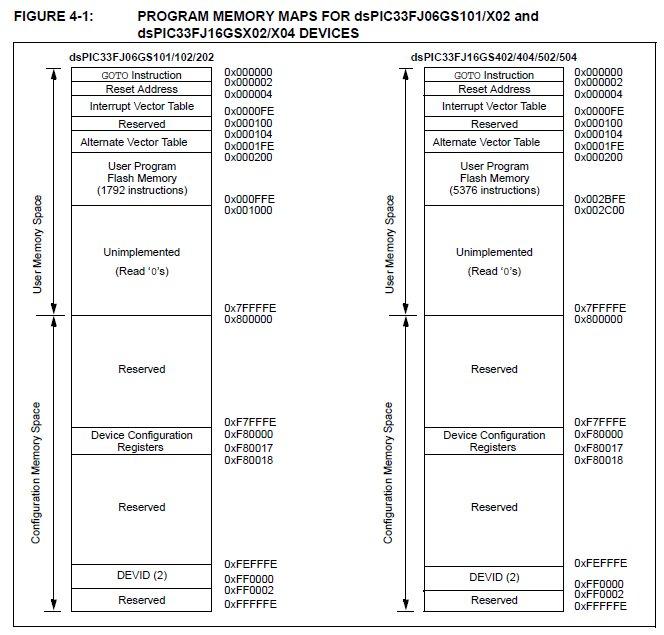

Memory organization for "D" type

Memory organization for "E" type
